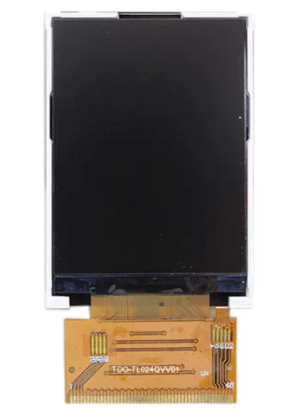

TFT LCD Display 2.4 Inch Graphics Video Display with RGB Interface
A high-quality 2.4-inch TFT LCD display featuring RGB interface for superior graphics and video performance.

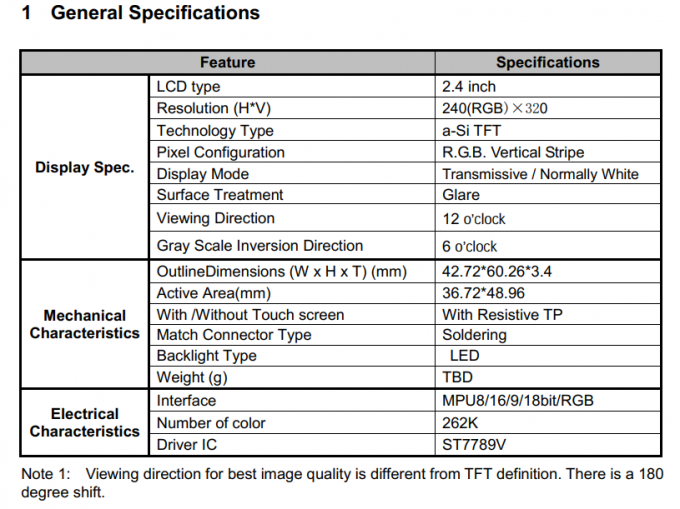

| Resolution: |
240 * 320 |
| Display Mode: |
Transmissive |
| Display Type: |
TFT LCD Display |
| Viewing Direction: |
12 O'clock |
| Outline Size: |
42.72 * 60.26 * 3.4 mm |
| Viewing Size: |
36.72 * 48.92 mm |
What is TFT LCD?
A thin-film transistor liquid crystal display (TFT LCD) is a type of liquid crystal display that uses thin-film transistor technology to improve qualities such as contrast and addressability. TFT technology means each pixel is driven by an individual transistor, enabling faster response times.
Advantages
- Lower energy consumption
- Sharper visibility and superb image quality
- Optimized physical design
- Fast response time
- Reduced eye strain
Disadvantages
TFT LCD displays may cost slightly more than regular monochrome displays. Optimal viewing is at the 12 o'clock direction, with potential inversion when viewed from other angles. Despite these minor limitations, TFT displays remain superior technology for modern applications.
Core Features
- Display Effect: High resolution (320*240/480*320), high contrast, and wide viewing angle for clear presentation of graphics and videos
- Interface Advantages: RGB parallel digital interface connects directly to MCUs and FPGAs with fast transmission rates
- Physical Specifications: Compact 2.4-inch size with low power consumption ideal for portable devices
Main Applications
- Industrial Control: Operating interfaces for PLCs, sensor controllers, and handheld detectors
- Consumer Electronics: Portable media players and small game consoles
- Smart Devices: Control panels for smart home and vehicle display modules
- Medical Instruments: Handheld testing devices and diagnostic equipment
- IoT Terminals: Display interfaces for low-power IoT devices
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging method varies based on product size and customer requirements.
Shipping: Express options including DHL, FedEx, EMS, UPS, air shipping, and sea shipping available.
Payment Method: Various payment options available.
